Gama industrial con vacío profundo (0,1 mbar) y caudales de 63 a 140 m³/h: capacidad de aceite ampliada para una óptima gestión térmica y sensores de temperatura opcionales para mantenimiento predictivo.
Or if you prefer, contact us by phone at: +34 937 841 268
A pumping capacity of up to 140 m³/h with an ultimate pressure of 0.1 mbar, a thousand times deeper than standard industrial vacuum, sized for demanding processes in vacuum packaging, thermoforming, liquid degassing and the evacuation of industrial chambers.
An enlarged oil reservoir that ensures optimal lubricant cooling and a stable working temperature during prolonged duty cycles, extending maintenance intervals and the service life of the mechanical block in 24/7 continuous operation.
Temperature sensors available as an option that enable real-time monitoring of the pump's operating conditions, supporting predictive maintenance strategies and minimising unplanned downtime in critical installations.
| MV-0063E | MV-0100E | MV-0140E | |
|---|---|---|---|
| Nominal pumping speed | 63 / 76 m³/h (50 / 60 Hz) | 100 / 120 m³/h (50 / 60 Hz) | 140 / 168 m³/h (50 / 60 Hz) |
| Ultimate pressure (gas ballast valve closed) | 0.1 mbar | 0.1 mbar | 0.1 mbar |
| Ultimate pressure (gas ballast valve open) | 0.5 – 1.5 mbar | 0.5 – 1.5 mbar | 0.5 – 1.5 mbar |
| Nominal motor power | 2.2 / 2.6 kW (50 / 60 Hz) | 3.0 / 3.6 kW (50 / 60 Hz) | 4.0 / 4.8 kW (50 / 60 Hz) |
| Nominal motor speed | 1425 / 1710 rpm (50 / 60 Hz) | 1425 / 1710 rpm (50 / 60 Hz) | 1425 / 1710 rpm (50 / 60 Hz) |
| Noise level (ISO 2151) | 64 / 67 dB(A) (50 / 60 Hz) | 65 / 68 dB(A) (50 / 60 Hz) | 70 / 71 dB(A) (50 / 60 Hz) |
| Oil capacity | 2.0 l | 2.0 l | 2.0 l |
| Approximate weight | 52 kg | 70 kg | 90 kg |
| Dimensions (L x W x H) | 669 x 410 x 300 mm | 725 x 410 x 300 mm | 770 x 430 x 300 mm |
| Gas inlet | G 1 1/4" | G 1 1/4" | G 1 1/4" |

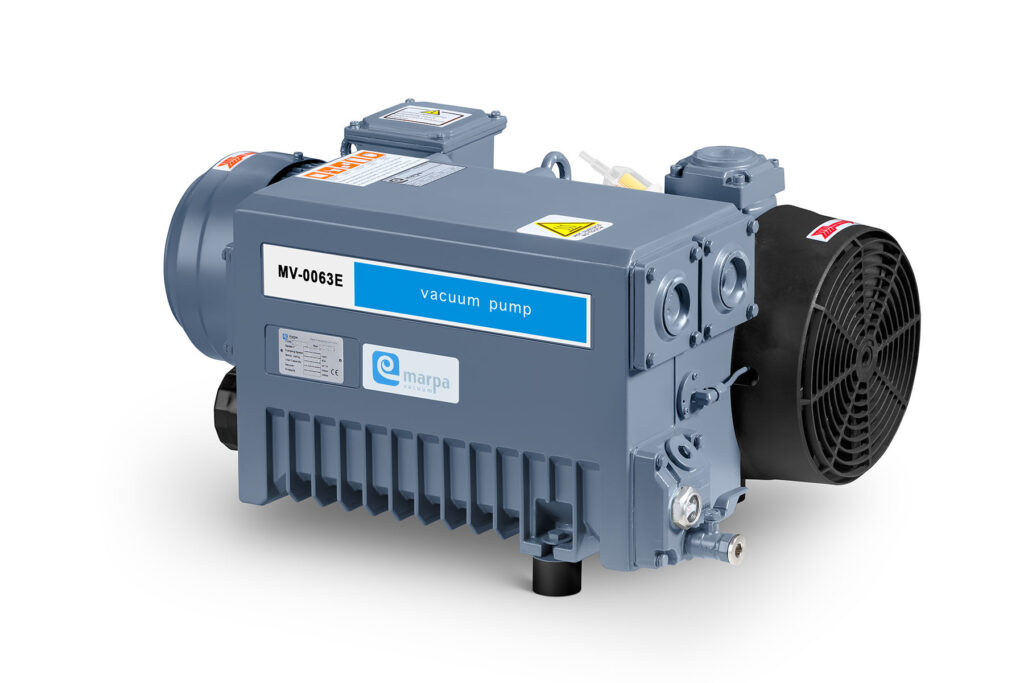

MV-0063-140E
Air at 20 °C. Tolerance: ±10%
