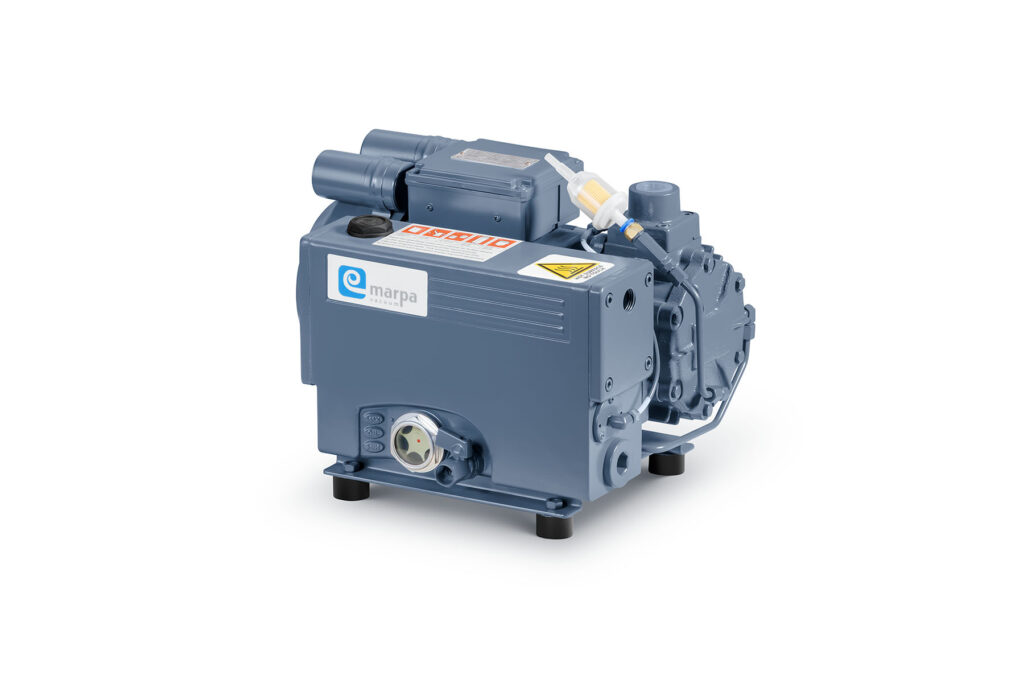

MV-0020E
MV-0020E
Four-pole version of the 20 m³/h block: motor running at 1,420 rpm to reduce mechanical wear and significantly extend service life compared to the standard version.
Or if you prefer, contact us by phone at: +34 937 841 268
Four-pole version of the 20 m³/h block: motor running at 1,420 rpm to reduce mechanical wear and significantly extend service life compared to the standard version.
Or if you prefer, contact us by phone at: +34 937 841 268
A 4-pole motor at 1420 rpm that halves the rotation speed compared with standard models, minimising mechanical wear and significantly extending the service life of the vanes.
An increased oil capacity (0.8 l) that ensures optimal cooling and heat dissipation, keeping performance constant during prolonged operation and continuous duty cycles.
A structural design and low motor speed that minimise noise and vibration, ensuring a more comfortable working environment in installations close to staff.
| MV-0020E | |
|---|---|
| Nominal pumping speed | 20 / 24 m³/h (50 / 60 Hz) |
| Ultimate pressure | 2 mbar |
| Rated motor power | 0.75 / 0.9 kW (50 / 60 Hz) |
| Nominal motor speed | 1420 / 1700 rpm (50 / 60 Hz) |
| Noise level (ISO 2151) | 61 / 63 dB(A) (50 / 60 Hz) |
| Oil capacity | 0.8 l |
| Approximate weight | 29 kg |
| Dimensions (L x W x H) | 382 x 295 x 232 mm |
| Gas inlet | G 3/4" |
MV-0020E
Air at 20 °C. Tolerance: ±10%
