Gama compacta de paletas lubricadas con tres caudales (10, 16 y 25 m³/h) y vacío final de 2 mbar, ideal para integración en maquinaria de envasado y procesos industriales ligeros.
Or if you prefer, contact us by phone at: +34 937 841 268
Direct-drive construction that reduces the overall dimensions and weight, making it easier to integrate into machinery and install in confined spaces.
Robust mechanics based on proven rotary vane technology, with high-durability components that ensure consistent, reliable performance in continuous operation.
Modular design that allows the pump to be precisely matched to the needs of each installation through a wide range of available accessories and versions.
| MV-0010N | MV-0016N | MV-0025N | |
|---|---|---|---|
| Nominal pumping speed | 10 / 12 m³/h (50 / 60 Hz) | 16 / 18 m³/h (50 / 60 Hz) | 25 / 30 m³/h (50 / 60 Hz) |
| Ultimate pressure | 2 mbar | 2 mbar | 2 mbar |
| Nominal motor power | 0.40 / 0.48 kW (50 / 60 Hz) | 0.75 / 0.9 kW (50 / 60 Hz) | 0.75 / 0.9 kW (50 / 60 Hz) |
| Nominal motor speed | 2880 / 3250 rpm (50 / 60 Hz) | 2880 / 3250 rpm (50 / 60 Hz) | 2880 / 3250 rpm (50 / 60 Hz) |
| Noise level (ISO 2151) | 53 / 56 dB(A) (50 / 60 Hz) | 54 / 56 dB(A) (50 / 60 Hz) | 64 / 66 dB(A) (50 / 60 Hz) |
| Oil capacity | 0.45 l | 0.45 l | 0.5 l |
| Approximate weight | 18 kg | 18 kg | 19 kg |
| Dimensions (L x W x H) | 315 x 244 x 220 mm | 315 x 244 x 220 mm | 334 x 262 x 208 mm |
| Gas inlet | G 3/4" | G 3/4" | G 3/4" |

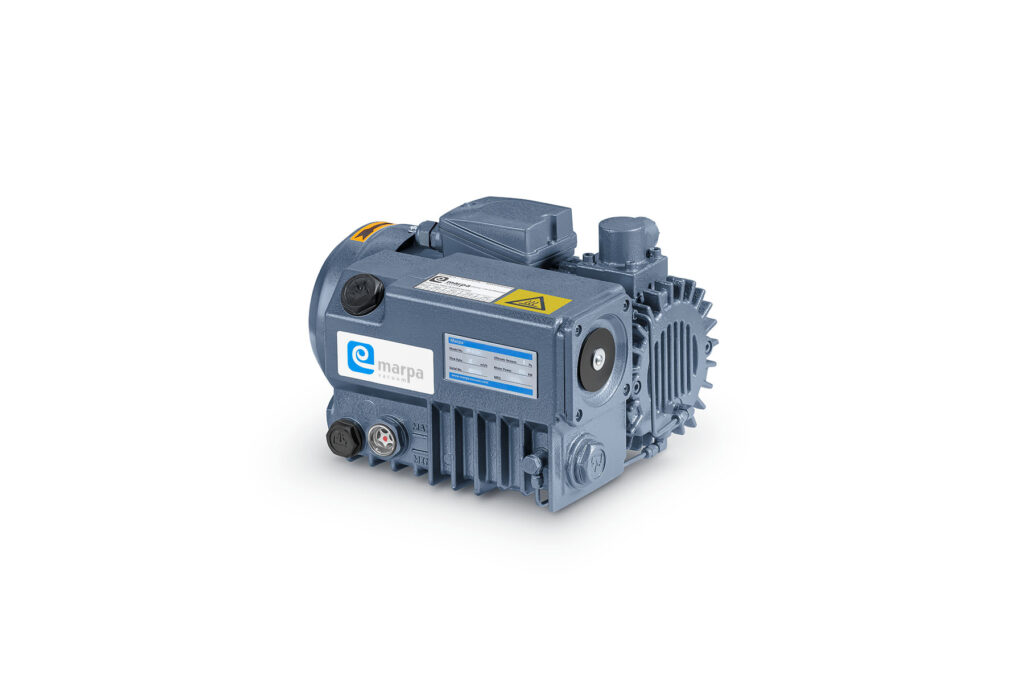

MV-0010/16/25N
Air at 20 °C. Tolerance: ±10%
